Tag-it™ HF-I Plus Transponder Inlays

Operating Frequency: 13.56MHz

Typical programming cycles: 100,000

Data retention time: >10 years

Typical quantity of good units per reel: 5,000

Share This Product:
  • General Specification
  • Specification for TI Inlay Types
  • Packaging
Recommended operating frequency
13.56 MHz
Factory programmed read-only number
64 bits
Memory (user programmable)
2k bits organized in 64-bit × 32-bit blocks
Typical programming cycles (at 25°C)
100,000
Data retention time (at 55°C)
>10 years
Simultaneous identification of tags
Up to 50 tags per second (reader/antenna dependant)
Foil width
48 mm ± 0.5 mm (1.89 in ± 0.02 in)
Thickness

Chip area: 0.34 mm ±0.02

Antenna area (Al both sides): 0.085 mm ±0.01

Antenna area (Al one side): 0.075 mm ±0.008
Base material
Substrate: PET (Polyethylenetherephtalate) Antenna: aluminum
Smallest bending radius allowed
18 mm (~0.71 in)
Tape tension (F), linear
Maximum 10 N
Operating temperature
–25°C to 70°C
Storage temperature (single inlay)
–40°C to 85°C (warpage may occur with increasing temperature)
Storage temperature (on reel)
–40°C to 40°C
ESD immunity
Minimum 3.5 kV (Human-Body Model) Minimum 200 V (Machine Model)
Delivery

Single-row tape wound on cardboard reel with 500-mm diameter

Reel outer width: approximately 60 mm (~2.36 in) Reel inner width: approximately 50 mm (~1.97 in)

Hub diameter: 76.2 mm (3 in)
Typical quantity of good units per reel
5,000

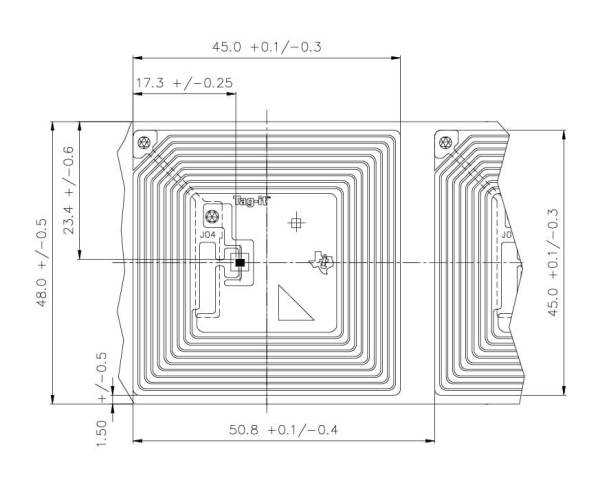

Specification for RSTI-I11-112A, RI-I11-112B

PART NUMBER

RSTI-I11-112A
RSTI-I11-112B
Passive resonance frequency (at 25°C)
13.86MHz±200KHz(includes frequency offset to compensate further integration into paper)
14.4MHz±200KHz(includes frequency offset to compensate PVC lamination)
Typical required activation field strength read (at 25°C)
98 dBmA/m
98 dBmA/m
Maximum required activation field strength read (at 25°C)
101 dBmA/m
101 dBmA/m
Typical required activation field strength write (at 25°C)
101 dBmA/m
101 dBmA/m
Antenna size
45 mm × 45 mm (~1.77 in × ~1.77 in)
Foil pitch
48 mm +0.1mm/–0.4mm (~1.89 in)


Specification for RSTI-I02-112A, RI-I02-112B

PART NUMBER

RSTI-I02-112A
RSTI-I02-112B
Passive resonance frequency (at 25°C)
13.86MHz±200KHz(includes frequency offset to compensate further integration into paper)
14.4MHz±200KHz(includes frequency offset to compensate PVC lamination)
Typical required activation field strength read (at 25°C)
94 dBmA/m
94 dBmA/m
Maximum required activation field strength read (at 25°C)
97 dBmA/m
97 dBmA/m
Typical required activation field strength write (at 25°C)
97 dBmA/m
97 dBmA/m
Antenna size
45 mm × 76 mm (~1.77 in × ~2.99 in)
Foil pitch
96 mm +0.1mm/–0.4mm (~3.78 in)

Specification for RSTI-I03-112A

PART NUMBER

RSTI-I03-112A
Passive resonance frequency (at 25°C)
13.86 MHz ± 200 kHz (includes frequency offset to compensate further integration into paper or PVC lamination)
Typical required activation field strength read (at 25°C)
107 dBmA/m
Maximum required activation field strength read (at 25°C)
109 dBmA/m
Typical required activation field strength write (at 25°C)
111 dBmA/m
Antenna size
22.5 mm × 38 mm (~0.89 in × ~1.5 in)
Foil pitch
48 mm +0.1 mm/–0.4 mm (~1.89 in)

Specification for RSTI-I16-112A

PART NUMBER

RSTI-I16-112A
Passive resonance frequency (at 25°C)
13.70 MHz ± 400 kHz (includes frequency offset to compensate further integration into paper or PVC lamination)
Typical required activation field strength read (at 25°C)
113 dBmA/m
Maximum required activation field strength read (at 25°C)
116 dBmA/m
Typical required activation field strength write (at 25°C)
116 dBmA/m
Antenna size
ø 24.2 mm +0.1 mm/–0.2 mm (~0.95 in)
Foil pitch
50.8 mm +0.1 mm/–0.3 mm (2 in)
