Sheet size: Max. 620 x 520 mm / 24.4x 20.5 inch (customized)

Thickness: 0.30mm/11.8mil for offset print type; 0.20-0.24, 0.28, 0.30, 0.36±0.04mm customized for RFID card make; 7.9-9.4, 11, 12, 14.2±1.6mil customized for RFID card make

Support chip: LF, HF

MOQ: 10,000PCS

Contact Us Request a quote
Share This Product:
  • DESCRIPTION
  • QUALITY GUARANTEE

Overview

Dream to make RFID Card super-flat in top quality, also possible to apply extra layers as wish? Should embrace innovation comparing with current way!

Pre-laminated Inlay has a trend of getting thinner & super flat. Like to recommend you revolutionary technologies for pre-laminated sheet inlay!

· Make offset or digital printable with pre-laminated inlay sheet? Yes NOW!
· Get pre-laminated sheet inlay over 0.20mm/7.9mil thickness? Yew NOW!
· Apply extra material layers for anti-counterfeiter or other application? Yes NOW!

RealSmart Tech proudly introduces you Super Thin & Flat Sheet Inlay, which is under mass-production and ready to provide samples for your testing!

Any layout, thickness, HF/13.56MHz chips will be available to support your innovation! No doubts, it’s finest sheet inlay in world market!
Brief Spec


Sheet Size/Layout

※ Max. 620 x 520 mm / 24.4x 20.5 inch (customized)

※ 3x7, 3x8, 5x5, 6x8 ,7x8 etc customized
Thickness

※ 0.30mm/11.8mil for offset print type

※ 0.20-0.24, 0.28, 0.30, 0.36±0.04mm customized for RFID card make

※ 7.9-9.4, 11, 12, 14.2±1.6mil customized for RFID card make
Chip Type
 LF,HF (NXP Mifare,ICode,NTAG families, ST, Infineon, EM or any brand)
Frequency/Protocol
 13.56MHz /ISO14443/15693/NFC/Felica etc), customized
Storage Temperature
 0℃ ~ +50℃
Material
 Copper embedded wire antenna, patented chip packaging module and manufacturing tech with material PVC, Teslin, Polycarbonate etc.

Feature

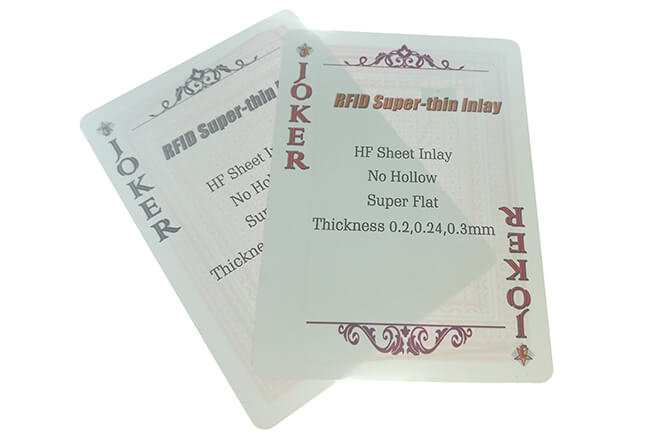

  • Super-thin thickness (0.2mm), suitable for making ultra-flat & ultra-thin card.
  • Perfect personalized printing effect on finished cards , no marks on area of chip & coils.
  • Better physical performance of bending & torsion.
  • Mature production technologies, higher throughout.

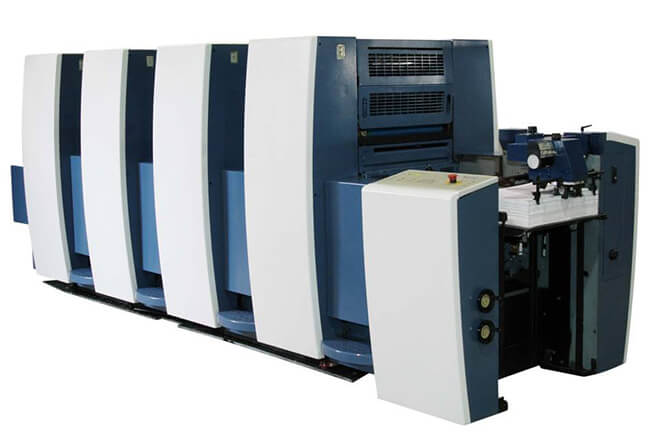

Direct printing

We promise

  • Inlays are 100% function tested. Each transponder’s UID data and RF parameters will be detected and recorded. Providing the UID data along with shipping is possible.

    1

  • Frequency tested and recorded (Options)

    2

  • Block check (Options)

    3

  • NXP Mifare 1K S50 7Byte transfer to 4Byte (Options)

    4

  • Inlays are 100% dimension measured & visual inspection

    5

  • Strict production management & QC process control according to ISO standards

    6

  • Proven quality level for global customers. Widely using in Europe, Japan etc market.

    7

  • Reliability test executed under professional testing house.

    8
Believe you will get the finest Sheet Inlay in world market? Welcome your claim for sample making & qualification.
