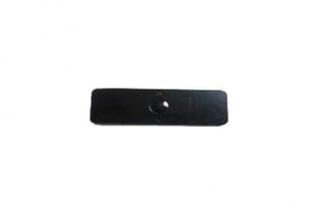

RFID ON METAL PCB TAG RS-10717(with magnet)

Size: 107x17x3.3mm

Chip: lmpinj M4QT

Operating Temperature: -30 to +85 ℃

MOQ: 100 PCS

RoHS: Compatible


Share This Product:
  • DESCRIPTION
  • PARAMETER
  • TEST PERFORMANCE

RS-10717

Overview

RS-10717 is the latest recyclable tagin metal environment for assent management. No need mounting with inner magnets, easy to take off for recycling use. It can meet the distance over 2m by hand-held reader; the unique features fit storage and logistics, shelf management well.


Benefits

RealSmart,is a leading provider of application-specific RFID tags.Its capability is powered by its unique in-house production line with a complete tag manufacturing process,including RF materials preparation,chip attachment assembly and expertise in RF antenna designs.
  • 01
    Professional Design Ability
    - Design of the microwave ceramics
    - Development of the Antenna
    - Design of special label
  • 02
    Strict Quality Control System
    - Anechoic Chamber,Tag Formance,All kinds of analysis test equipment
    - Professional environmental laboratory
    - 10 large pressure machines,6 DEK printing machines,30 network analyzera,More reading and writing equipments
  • 03
    We can Support
    - AL Bonding,Golden wire bonding
    - UV Printing,Laser
    - Ultrasonic Welding
    - Reliability Test,Consistency Testing

Product

RS-10717

Size(L*W*H)

107x17x3.3mm

Protocol

EPC C1G2(ISO 18000-6C)

IC Type

lmpinj M4QT

Memory

128-bit EPC(Extended memory:512bits), 64-bit TID

Application

Metal containers and any metal items that can put the tags, Logistics, IT assets, Equipment, Tooling

Avg.Read Range

Fixed Reader:≥4.0m

Alien Handheld Reader:≥2.0m

Operating Temperature

-30℃ ~ 85℃

Ambient Temperature

-40℃ ~ 150℃

Frequency

902~928MHz(US)

IP Rating

IP63

Fixed Form

Screw, Rivet , AB strong glue , Tie,or 3M 300LSE tape(opt)

TEST PERFORMANCE

  • Temperature Shock Test

    Pass (from -40 degree to 150 degree, 6 hours per circle, 7 days total)

    1
  • Solvent Test

    95% Alcohol test pass, #92 Gasoline test pass

    2
  • Drop Test

    Pass (200 times from 1 m)

    3
  • Opption

    Silk printing, Laser printing , Pre-encoding, Customized data label, Surface painting (after painting, the IP rating can be IP65), Photo or graph painting (need to do surface painting firstly)

    4
  • Remark

    Can customize PCB tags for customers basing on the requirements of frequency, sharp, size, chips, read range, attachment method, and so on

    5
